Client: City of Camrose

Consultant: WSP

Start Date: August 2020

Completion Date: October 2020

Project Scope:

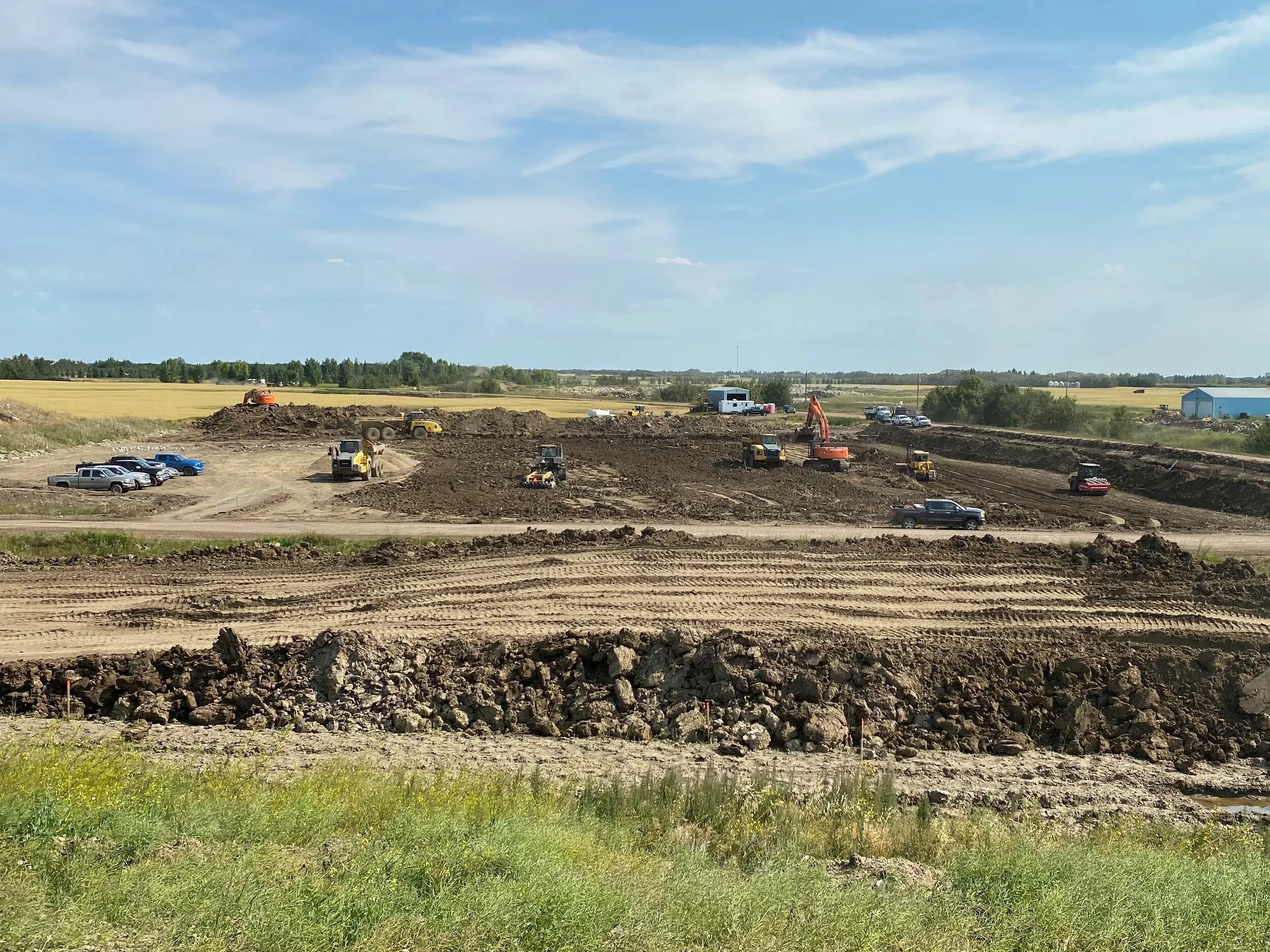

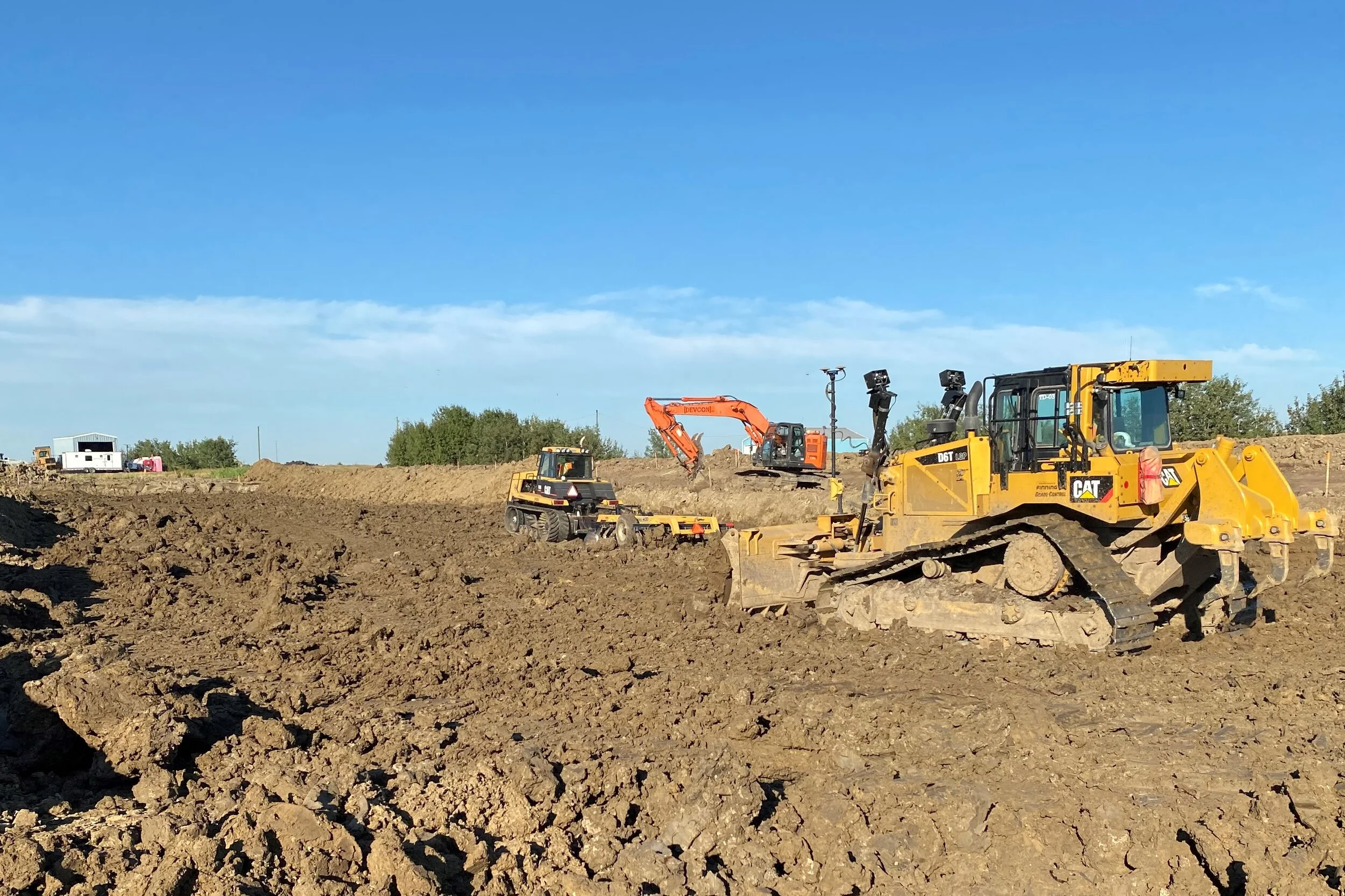

• Excavate, haul and stockpile ~11,000 m³ of topsoil and subsoil

• Excavate, haul and stockpile ~20,000 m³ common material

• Import and place ~5,000 m³ clay material from borrow

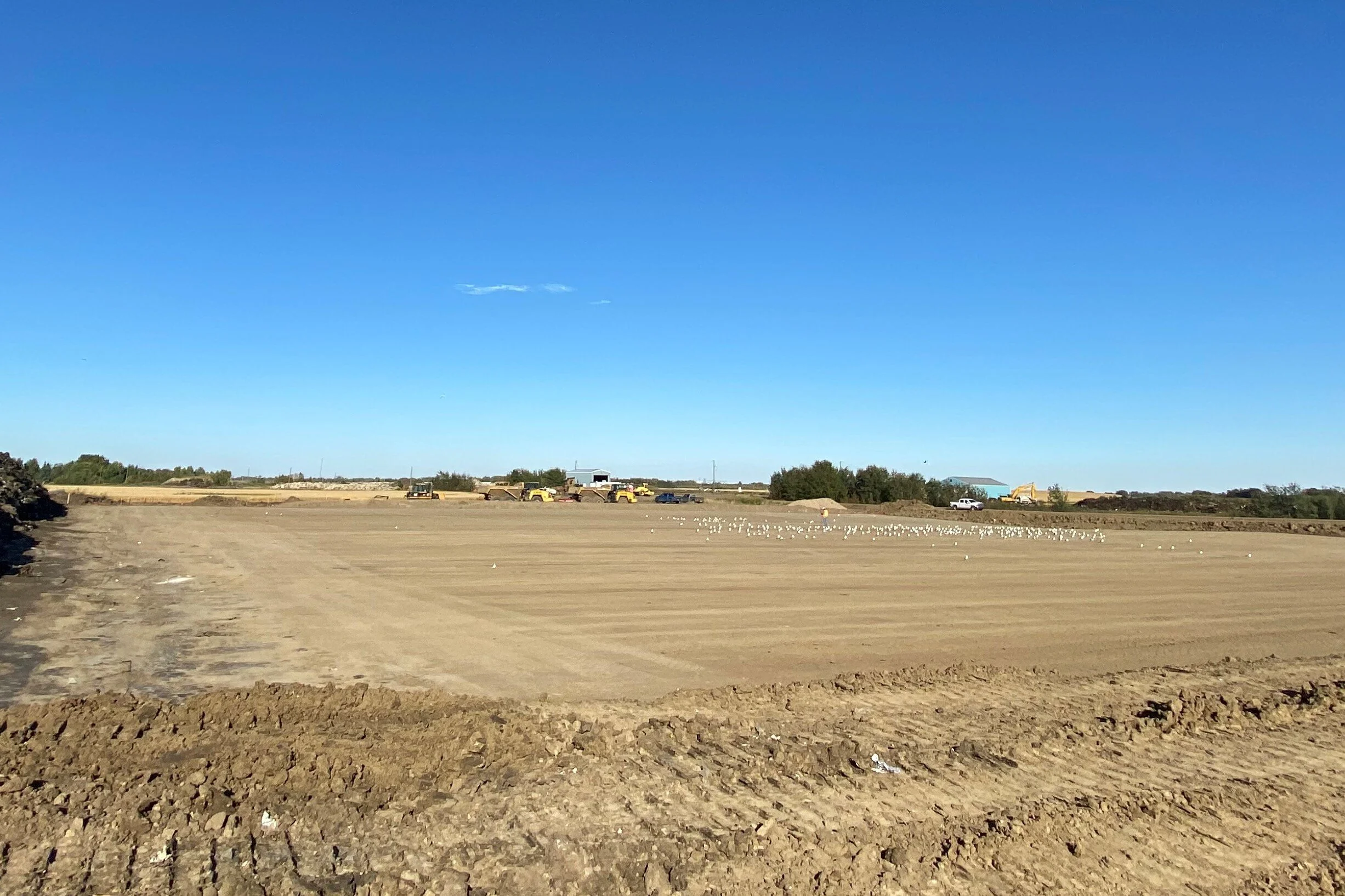

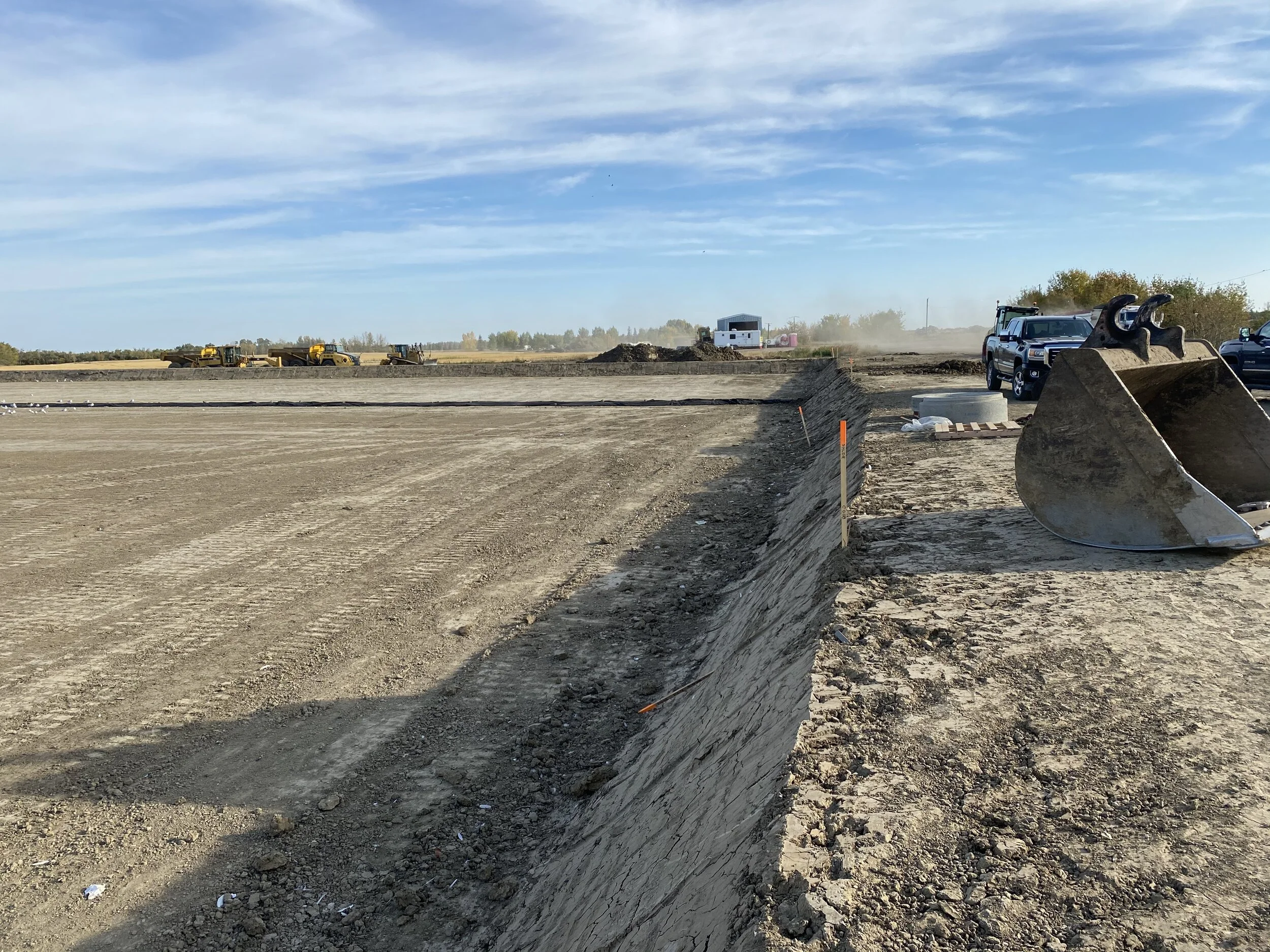

• Install ~20,000 m³ compacted clay liner and clay liner end slopes including subgrade preparation

• Supply and place perforated and non-perforated HDPE leachate collection pipe including geotextile and drainage rock

• Supply and install leachate collection manholes and associated fittings

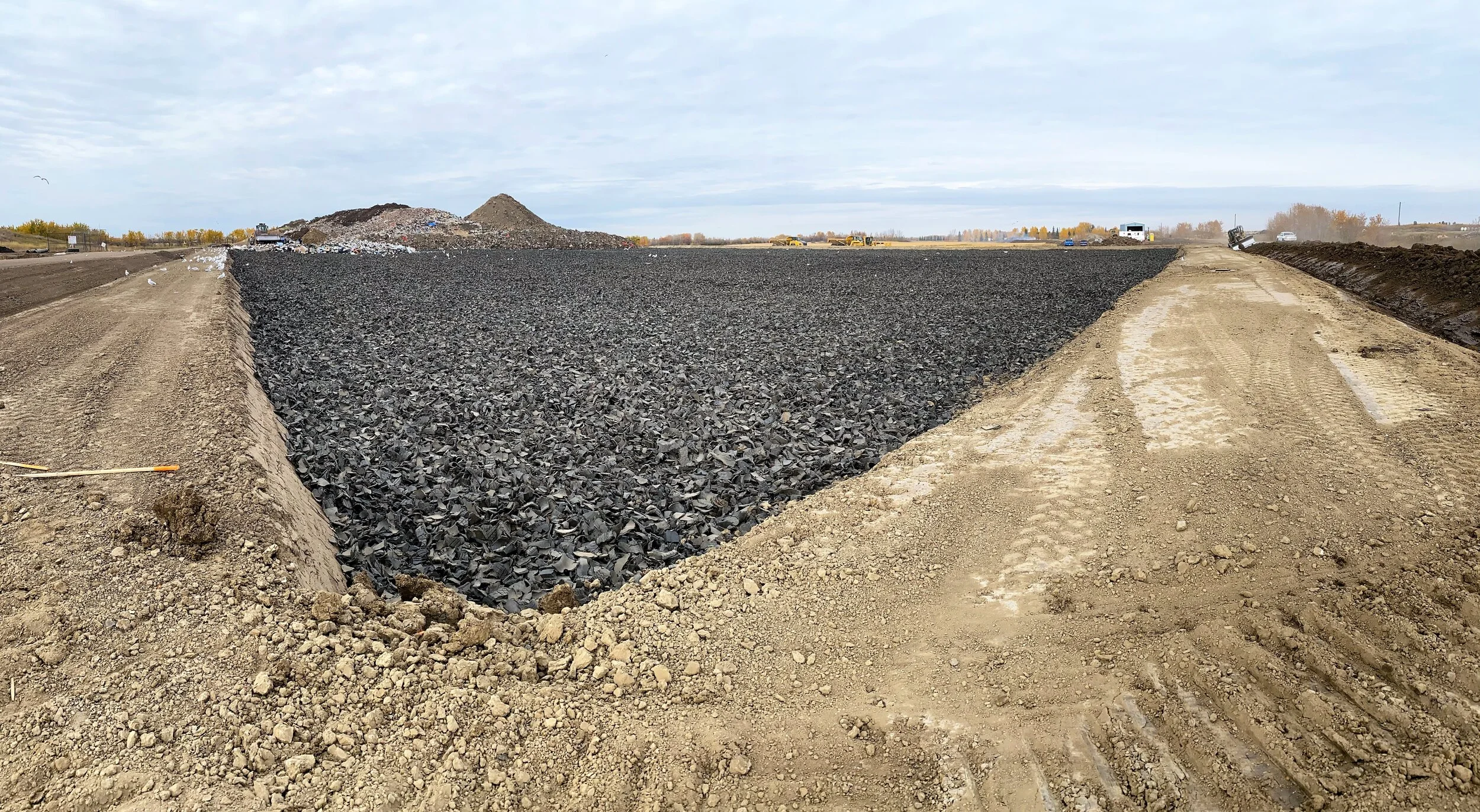

• Load, haul and place ~14,000 m² of tire shred drainage layer

• Load, haul and place approximately 1 meter thick garbage frost cover layer

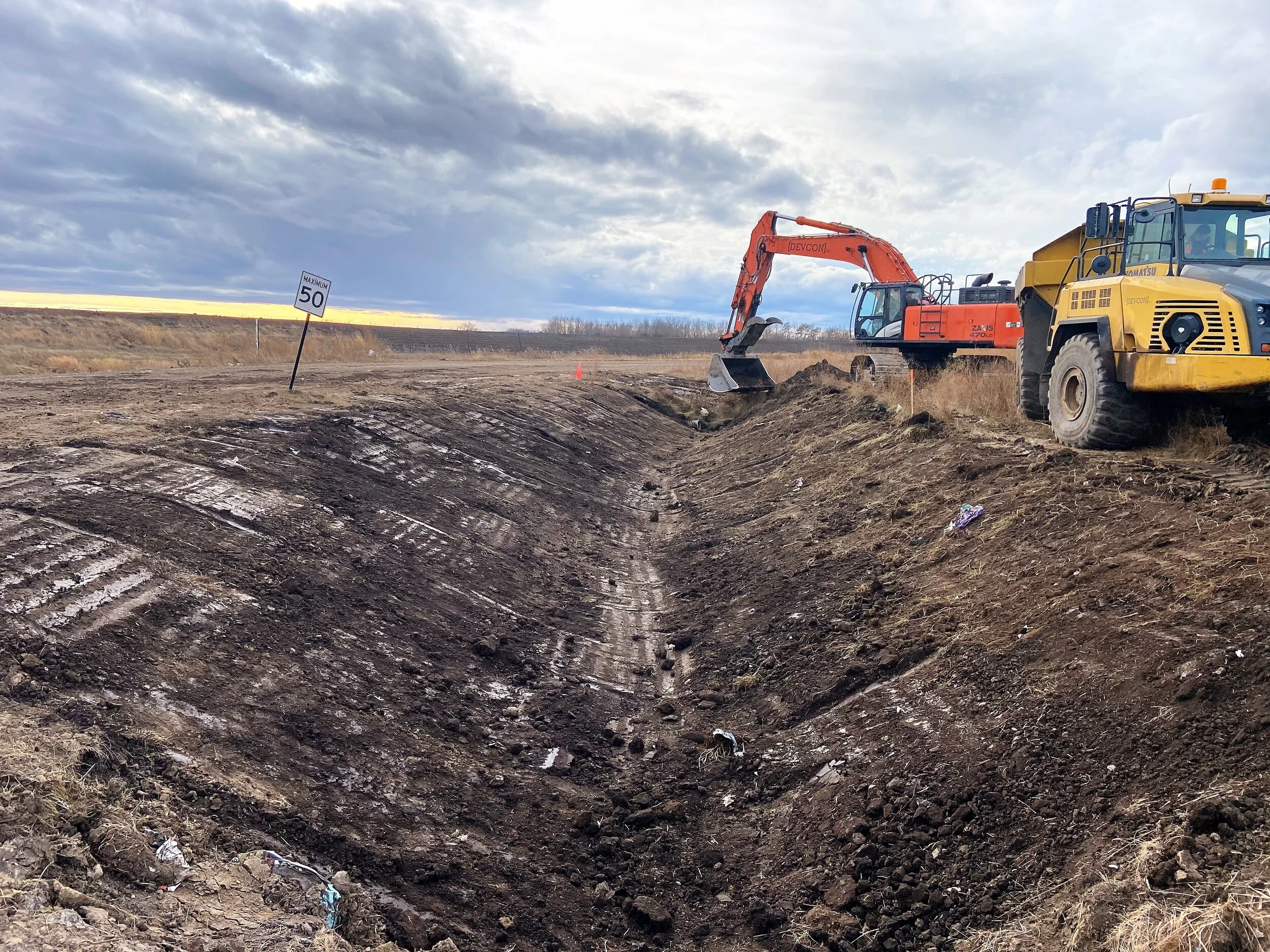

• Supply and install 7 each 500 mm CSP drainage culverts

• Install a recycled concrete equipment access road including approaches

• Installed recycled concrete burn pits
